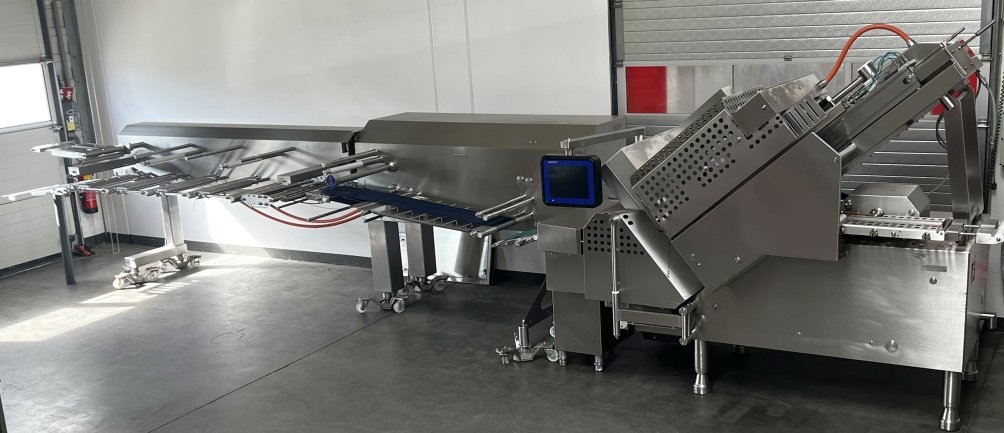

Computerslicer CCS 902
Touch Control
ELAU drive
High performance Slicer for slicing meat, sausage and cheese
products into slices with adjustable thickness of 0.1 up to 50 mm.
Slicing throat, width continuously adjustable up to 380 mm,
(depending on machine execution).

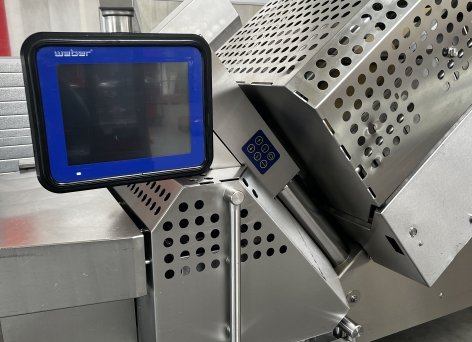

Machine control system with user-friendly interface.
Machine made completely of solid stainless steel.
Product carrier PZF 10.20.10.010
Carrier unit for product length up to 1.200 mm.
Product support belt. The support belt moves forward up to the slicing bar
after the loading procedure. At the end of each slicing procedure the support
belt is pulled back pneumatically and in this way clears an opening for the
ejection of the end pieces. The conveyor belt runs synchronously with the
gripper by which it is driven. The support conveyor and the conveyor belt can
be removed from the machine.
Execution ground and polished
without lateral pressure device.
The clearance height can be progressively adjusted from 125 to 180 mm.
Transfer unit CCU 15.10.00.000
The transfer unit consists mainly of a portioning conveyor and a control
conveyor. The portioning conveyor picks up the slices cut by the Slicer,
divides them into portions and passes them on to the control conveyor for
further transport to the subsequent units. The basic function can be
implemented with each CCU variant. The transfer unit is attached to the
discharge side of the Slicer. It can be set progressively in a horizontal or
vertical position or at an angle. The transport means and
the rollers can be easily removed for cleaning.
CCU Standard with portioning and control conveyor the CCU
expanded as followed:
Stacking CCU
for making stacks of a maximum height of 80 mm. The stacking CCU consists
mainly of a lowerable portioning conveyor and a control conveyor. The slices
cut by the slicer are taken from the portioning conveyor, which is lowered by
the thickness of the cut slice during each slicing procedure in order to
maintain the same drop height for the individual slices. The stacks are
passed on to the control conveyor by the portioning conveyor for further
transport to the subsequent units.
Length of portioning conveyor approx. 150 mm,
Length of control conveyor approx. 430 mm.
Portioning conveyor with flat belts,
Control conveyor with round belts.
Slicing bar SKE 20.10.00.000
Slicing bar carrier with external gap adjustment.
With this system, it is possible to adjust the cutting gap progressively
from the operator side of the machine housing.
The clearance height can be adjusted in steps.
Interleaver slicing bar.
Slicing bar horizontal, straight.
Sensor for identification of beginning of product PAS 00.00.00.000
A photo eye is mounted in the product feed area
to identify the beginning or front of the product.
Knife head MKF 15.00.00.000
Idle cut involute knife head WSK 3
With automatic slicing gap adjustment, including drive for idle cut support
for speeds from 200 to 1,500 revolutions per minute. The additional idle cut
support largely prevents the product-related tendency to form scraps and
ensures that the first and last slices of a portion are parallel.
Top product guide PVO 00.00.10.000
with pneumatic Downholders
Loading BEL 40.00.00.000
Loading arm with product adjustment for lifting the products
from a horizontal position to the feeding level,
with a timing belt connected in series (length approx. 1,000 mm).
The unit is designed for a maximum product length of approx. 750 mm
and a maximum product width of approx. 240 mm.
With automatic loading.
Recommended for raw ham products.
Interleaver CCI 10.00.10.000
The Interleaver inserts separating sheets of film or paper between the
slices. The sheets are cut separately from a roll before inserting. The
maximum cutting performance is:
- cutting system with circular-knife 600 rpm.
- cutting system with sickle shaped knife 800 rpm.
Interleaver CCI
- paper length adjustable from 50 mm up to 110 mm
(depending on cutting capacity) - paper width from 80 mm up to 180 mm
(depending on product dimensions) - usable materials:
paperweight from 40 up to 60 g/m²
PS-film, film thickness min. 75 µm in applications with sickle shaped
knife film thickness min. 65 µm in applications with circular-knife
Advice:
The function of the Interleaver can only be ensured, by using the
film types being recommended by Weber.
- diameter of paper roll max. 400 mm
- core diameter 76 mm
- width of slicing throat max. 230 mm
possible mode of operation:
- without Slicer idle-cuts
- with Slicer idle-cuts
without sheet under the 1st slice
with sheet under the 1st slice
- Interleaver not active.
Initial cuts removal conveyor
Conveyor for transporting away the first slices and/or the last incomplete
portion to the non-operator side of the machine. This is only available
for machines with a stacking CCU or a portioning conveyor with a pneumatic
lowering device.
Checkweigher CCW 200 10.10.00.100
Digital weighing system with transport speed up to 1,300 mm/s.
For cleaning it, the checkweigher must not be dismantled.
Checkweigher completely made of stainless steel.
Mono-checkweigher
Weighing table, length approx. 485 mm, width approx. 375 mm
capacity up to 100 weight measurements/min. (depending on portions)
max. weight of portion: 1.000 g, resolution 0.1 g
weighing table with round belts.
Rocker (integrated in Speed Loader)
3-track rocker enclosed in washdown proof stainless steel cabinet
Mono rocker
length approx. 450 mm
width approx. 400 mm
Execution with round belts
Speed-Loader CCA 20.00.10.500
Automatic high-speed loader, providing the die formats for the packaging
machine and infeeding them into it. Loader housing in lift design. All belts
are powered by speed-driven servo motors. The transport equipment can be
easily removed for cleaning. The line divider is positioned by a servo-driven
ball roller spindle. The photoelectric barriers are shock-protected. The
speed-loader has its own controller which is linked to the machine
controller. The Slicer and loader are both operated from the same position.
The maximum diameter of the lower film roller of the packaging machine
is 800 mm.
In certain cases the speed-loader CCA works as loading aid only,
manual correction might be necessary.
2-track grouping conveyor, with 2-drives,
currently set-up for 2-track application!
1-track line dividing
Line dividing 1 to X
set-up with 2 track clamping piece 2x approx. 130 mm width, on one axis
With 4 buffering conveyors,
length approx. 500 mm.
Infeed conveyor
usable width approx. 480 mm,
length of conveyor approx. 1,200 mm.
WITH upper reject conveyor
Additional increase of the feet SFE 30.00.00.000
For Slicer model MCS.
1 Pc. Weber-knife, sickle shaped WSM 00.10.10.400
without teeth
Teflon plated, cutting edge uncoated.
Distance centre of rotor to cutting edge 400 mm
1 Pc. blade guard for Weber knife, sickle shaped
Blade guard for Weber knife, sickle shaped, distance 400 mm.
2 Pc. Downholder NH 20.10.00.000
Downholder, pneumatic execution
Execution with roller
1 Pc. Automatic product grippers APR 14.05.10.000
for product width from approx. 141 up to 160 mm
for product height from approx. 41 up to 60 mm
for raw ham products
Remarks:
Product grippers, downholders and sickle knives are chosen in accordance with
the original customer's products only after putting the machine into
operation and will therefore be invoiced only on delivery! For automatic
products grippers in combination with preformed slicing bars an application
technology test is always necessary!
