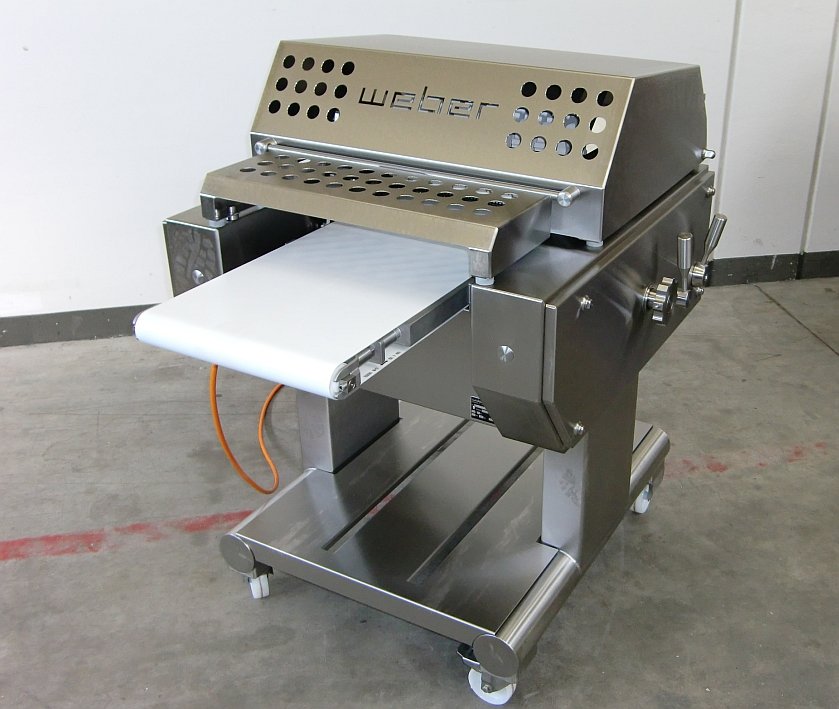

Description ASB 460-1.1
A high-performance automatic belt derinder
for continuous industrial use
Automatic belt derinder for all butchered pork products
Machine execution ASB 460-1.1
- Stainless steel design for the latest hygienic standards
- Machine frame with laser-cut side panels made of 10 mm
thick stainless steel Thickness adjustment: from 0 - 4 mm
Patented automatic initial cut control for a clean first cut

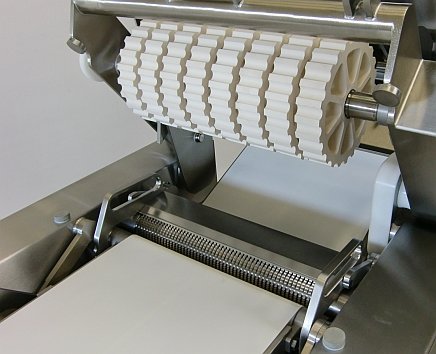

and high yield- Spring-mounted cutting system with automatic adjustment to

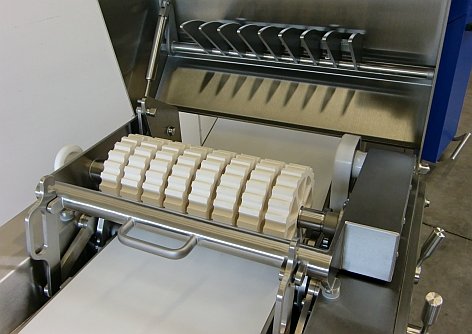

different rind qualities for neatly derinded products Pressure device: height adjustable for products up to 120 mm
with removable rubber pressure rollerInfeed/outfeed belt with fast-tensioning device
- Cleaning: all product-conveying parts can be fitted and removed
without tools Cleaning position with rotating pressure roller, toothed roller and
outfeed conveyorMobile in any direction on 2 guide rollers with wheel locks
- Conforms to norms, with CE label
Technical data ASB 460-1.1
Machine Data:
- Cutting width: 460 mm
- Motor performance: 1.1 kW
- Electrical connection: 400 V/50 Hz/16 A
- Sound pressure level: < 82 dB (A)
