Max. cheese loaf diameter: 450 mm

Description of operational sequence:

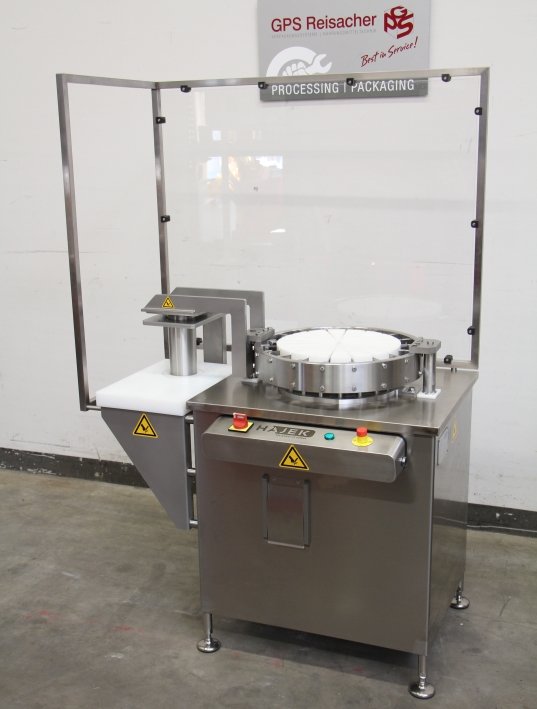

The operator places the cheese loaf onto the support block of the core
punching unit. The core punching unit is mounted on the left hand side of the
KMS 450 and it is connected to the central lifting unit of the machine.
When the operator starts a working cycle by pressing the two-hand-control
system, the core punching unit and the cutting frame move down together to

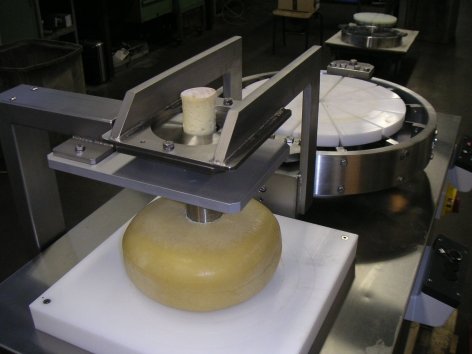

the lower rest position. The core punching is equipped with a core knife
which is pushed through the cheese from above. After the core punch, the
cheese loaf is moved from the core punching unit to the support block of the
cutting set. At the same time a new cheese loaf can be placed on the support
block of the core punching unit. By pushing the two hand control system one

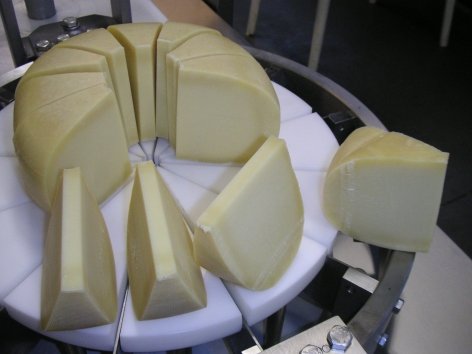

loaf is divided into segments and on the other loaf the core is punched out.
After the cutting process the cutting set is in the lower rest position and
the operator removes the cheese segments manually. Meanwhile the operator can
start the movement of the knife set and the core knife into the upper rest
position by pushing the knee-push button.

Output:
about 2 working cycles per minute (depending on the working stuff)

technical data:
length: approx. 1,300 mm
width: approx. 735 mm
height.: approx. 1,850 mm
working height: approx. 1,000 mm

Machine configuration:

• base frame welded stainless steel material 1.4301
• Supporting-table cover made of stainless steel material 1.4301

• panels in stainless steel material no. 1.4301

• pedestal adjustable with vibration damper elements

• electric: 3 x 230 / 400, 50 Hz

• according to the CE regulations

• Basic Machine (WITHOUT Core punch unit, WITHOUT Cutting set)
