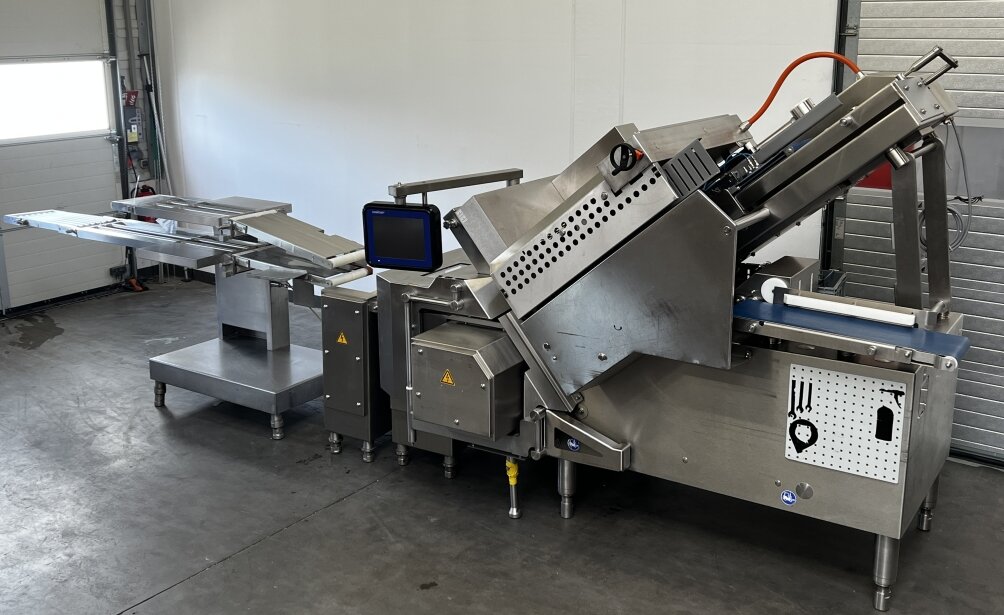

Computerslicer CCS 902

Touch Control
ELAU drive

High performance Slicer for slicing meat, sausage and cheese
products into slices with adjustable thickness of 0.1 up to 50 mm.

Slicing throat, width continuously adjustable up to 380 mm,
(depending on machine execution).

Machine control system with user-friendly interface.

Machine made completely of solid stainless steel.

Product carrier 900 B 10.20.20.010
Carrier unit for product length up to 1.200 mm.
Product support belt. The support belt moves forward up to the slicing bar
after the loading procedure. At the end of each slicing procedure the support
belt is pulled back pneumatically and in this way clears an opening for the
ejection of the end pieces. The conveyor belt runs synchronously with the
gripper by which it is driven. The support conveyor and the conveyor belt can
be removed from the machine.
Execution teflon-coated
(required for cheese application)
without lateral pressure device.
The clearance height can be progressively adjusted from 125 to 180 mm.

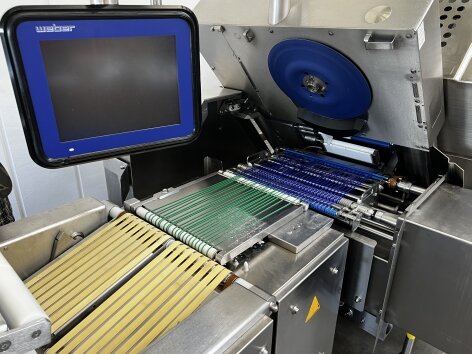

Transfer unit 900 C 50.00.00.000
The transfer unit consists mainly of a portioning conveyor and a control
conveyor. The portioning conveyor picks up the slices cut by the Slicer,
divides them into portions and passes them on to the control conveyor for
further transport to the subsequent units. The basic function can be
implemented with each CCU variant. The transfer unit is attached to the
discharge side of the Slicer. It can be set progressively in a horizontal or
vertical position or at an angle. The transport means and
the rollers can be easily removed for cleaning.

CCU Standard with portioning and control conveyor the CCU
expanded as followed:

CCU for special portions
CCU with a special portioning conveyor that transverses
to create a side shingle or other special portion shape.
The portioning conveyor can be moved via servomotor
transversely to direction of travel.
Maximum transverse movement approx. 200 mm.

Length of portioning conveyor approx. 150 mm,
Length of control conveyor approx. 430 mm.
Portioning conveyor with belt,
Control conveyor with round belts and transfer needles.

Slicing bar 900 D 10.10.00.000
Standard slicing bar carrier
The slicing bar carrier is attached to the product carrier.
The clearance height is set progressively together with the
product carrier rate.
Slicing bar horizontal, straight.

Knife head 900 E 50.00.00.000
Circular knifehead SK 144 (Easy-Lock)
Speed increasing ratio 1 : 7

Top product guide 900 F 00.00.10.000
with pneumatic Downholders

Loading 900 G 50.00.00.000
Loading arm with rolling track equipped with longitudinal rollers and coated
product support, for lifting the products from a horizontal position
to the feeding level, with a timing belt (length approx. 1,000 mm)
connected in series (recommended for raw ham or cheese products).
The unit is designed for a maximum product length of approx. 900 mm
and a maximum product width of approx. 280 mm.
With automatic loading.

Interleaver CCI 900 L 20.10.00.000
The Interleaver inserts separating sheets of film or paper between the
slices. The sheets are cut separately from a roll before inserting. The
maximum cutting performance is:

• cutting system with circular-knife 600 rpm.
• cutting system with sickle shaped knife 800 rpm.

Tandem-Interleaver CCI 303

• paper length adjustable from 50 mm up to 110 mm
  (depending on cutting capacity)
• paper width from 80 mm up to 180 mm
  (depending on product dimensions)
• usable materials:
  paperweight from 40 up to 60 g/m²
  PS-film, film thickness min. 75 µm in applications with sickle shaped
  knife film thickness min. 65 µm in applications with circular-knife

Advice:
The function of the Interleaver can only be ensured, by using the
film types being recommended by Weber.

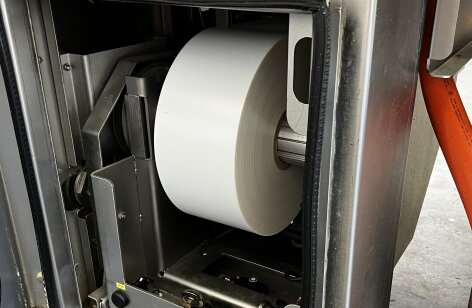

• diameter of paper roll max. 400 mm
• core diameter 76 mm
• width of slicing throat max. 230 mm

possible mode of operation:

• Mono-operation, paper width 80 mm up to 180 mm

• Tandem-operation, paper width 2 x 60 mm up to 2 x 90 mm

• without Slicer idle-cuts

• with Slicer idle-cuts

• without sheet under the 1st slice

• with sheet under the 1st slice

• Interleaver not active.

• Interleaver convertible from tandem into mono-operation
