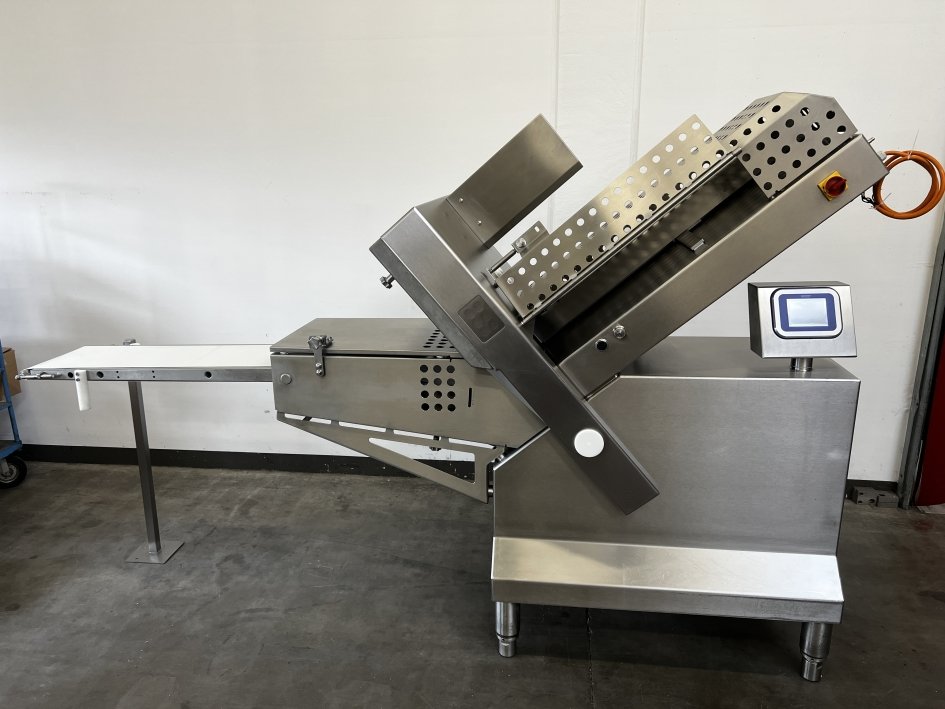

Slicer for slicing meat, sausage products
to slices with adjustable thickness of 0.5 to 50 mm.
Universal conveyor for transporting sliced portions.
Machine control system with user-friendly interface.
Machine made completely of solid stainless steel.
Maximal cutting performance 400 slices/minutes.
Carrier unit for product length up to 800 mm.
- Slicing bar horizontal, straight
Product carrier PZF 10.00.00.000
Standard, surface ground and polished.
Knifehead MKF 50.00.00.000
Circular knifehead SK 144 (easy lock)
Speed increasing ratio 1 : 7
Slicing throat SST 10.00.00.000
Slicing throat, standard
width fixed at 250 mm,
height fixed at 135 mm.
Transport conveyor UB-100 21.00.00.000
Transport conveyor for transporting sliced portions. The transport
conveyor is attached to the slicer on the infeed side and is supported
by the floor or by a packaging machine on the discharge side. The
conveyor belt can be easily removed from the belt frame for cleaning.
The transport speed is controlled by the slicer.
Length of the transport conveyor approx. 2,100 mm.
Belt width approx. 320 mm
2 Pcs. Downholder NH 10.00.00.000
Downholder, standard with rod, spring-loaded execution.
1 Pc. Weber circular knife WKM 10.10.20.460
model without teeth
coated, without coated cutting edge.
Diameter 460 mm
1 Pc. Blade guard for Weber circular knife of diameter 460 mm
1 Pc. Automatic product gripper APR 20.10.10.000
for product width from approx. 201 up to 220 mm
for product height from approx. 81 up to 110 mm
for meat and sausage products
Product grippers, downholders & knives are chosen in accordance with the
original customer's products. For automatic products grippers in combination
with preformed slicing bars an application technology test is always
necessary! The number of grippers results from the applications.
