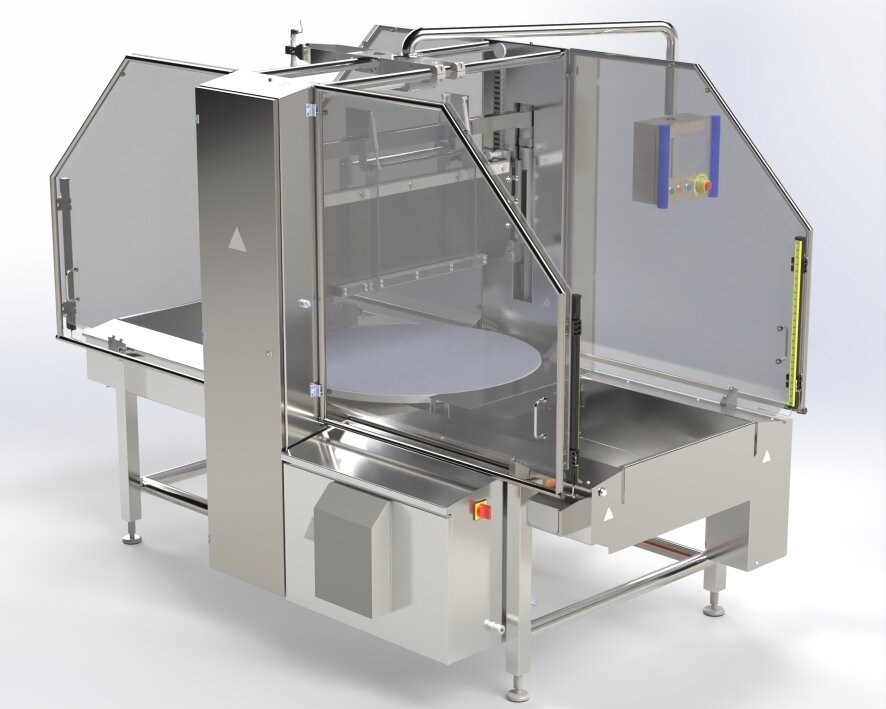

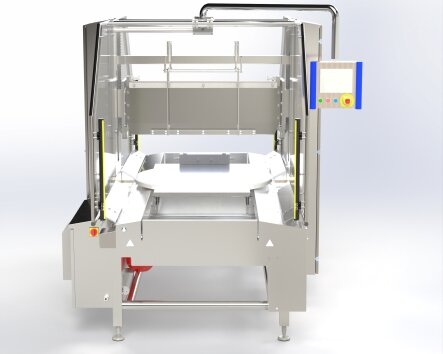

The reisacher GES 1000 Servo Cheese-Cutting Machine offers a precise and
multifunctional solution for cutting cheese in various formats and
configurations.
Our engineers have completely redesigned the GES 1000 and equipped with the
latest servo technology, which ensures maximum precision in all axes.
precision in all axes. Thanks to the servo-controlled drives, the highest
performance is guaranteed, which makes the GES 1000 Servo ideal for segment
cutting, bar cutting and portion cutting.
The machine can efficiently process both round cheese wheels and rectangular
cheese blocks efficiently and provides automatic product centring for both
applications. For cheese blocks, it enables flexible dividing into
variable widths so that different product widths can be cut precisely.
The GES 1000 Servo has a format range of max. 800 x 800 x 280 mm (Length x
Width x Height) for cheese blocks, and round loaves can be processed up to a
maximum diameter of 980 mm x 280 mm height.
Another highlight is the adjustable cutting speed, which makes it possible
to cutting both soft and hard products perfectly to the consistency of the
cheese. The ergonomic design of the machine also ensures and efficient
loading and unloading is also guaranteed, which makes work processes
significantly easier and faster.
The GES 1000 Servo therefore provides a fully optimized solution for
fast, precise and versatile cheese cutting - from automatic segmentation to
individual segmentation through to individual portion sizes.
- Machine dimensions: 2,750 mm length, 1,650 mm width, 2,150 mm height
Working height: 875 mm
Product dimensions:
Blocks up to 800 x 800 x 280 mm,
Loaves up to 980 mm diameter and 280 mm height
Cutting types and options:
Block cutting:
With the additional equipment for block cutting, rectangular blocks of cheese
can be can be cut precisely. The cheese is manually placed on the table and
the required bar width is entered via the control panel. The machine cuts
fully automatically. Fixed or automatic cutting of a cheese block with
adjustable start and end cuts.Segment cutting:
The turntable enables the automatic division of cheese wheels into even
numbers of segments. The number of segments to be cut is preselected via the
control panel and the machine does the rest by calculating the required
angles and dividing the product into even segments.
Max. segments 50 (depending on product)Bar cutting:
Rectangular cheese blocks and round loaves can be cut into bars.
The cheese is manually placed on the table and the required bar width is
entered via the control panel. If a mechanical stop is installed, the product
must be rotated by 180° in order to cut the wheels into bars.
Min. width of bar 20 mmPortion cutting:
After cutting into bars, the cheese bars are rotated 90° and placed on the
machine. With the additional 'mechanical stop' function, the belts must be
turned manually. If this option is omitted, the machine can cut the portions
automatically.
Equipment and operation:
The GES 1000 has a solid stainless steel construction (material
1.4301) with safety covers and protective doors made of acrylic glass.
Alternatively stainless steel safety doors are also available. The automatic
turntable provides for precise cutting processes, while the cutting blade is
equipped with a blade tilting device to ensure an optimized cut.
Product configurations can be saved via the intuitive control panel and
quickly retrieved when required. The control system allows adjustment of the
cutting parameters such as first cut, final cut and number of bars and
segments. A light barrier ensures a precise first cut, while the blade
automatically tilts to optimize the cutting result.
Product positioning functions: (optional at extra cost)
Mechanical stop:
The cheese is positioned manually against a fixed stop to ensure precise
alignment and optimum cutting guidance.Laser positioning device:
A laser projects a X onto the table to facilitate manual positioning of the
cheese. This helps the operator to place the product exactly and minimizes
errors.Mechanically on the knife:
Before slicing, the knife moves to the lower position and the product
is pressed against the blade to adjust it in its orientation.
This enables exact positioning, especially with rectangular formats.
(Only works in combination with the electric hold-down device)
Automatic positioning:
A light barrier system measures the position of the product and aligns it
automatically on the cutting table. Especially useful for rectangular
blocks of cheese, as it positions the product perfectly in relation to the
cutting blade.Virtual centering:
This option makes it possible to automatically measure and center round
cheeses on the turntable. Manual handling is no longer necessary and the
cheese wheels are cut precisely.
Summary:
The GES 1000 Servo is a powerful and flexible solution for cutting cheese in
industrial applications. With the segmentation and recipe-management function
and the optional extensions such as block cutting, 3D cutting, mechanical
alignment and virtual centering, the machine offers numerous options for a
wide range of applications.
It is particularly efficient and user-friendly and delivers consistently high
quality, whether for precise segmentation, complex cutting patterns
or large production quantities.
