Additional increase of the feet SFE 10.00.00.000
The increase mainly consists of spacers in order to
equal irregularities of the floor.
For Slicer model CCL.
1 Pc. Slicing bar SKE 10.10.00.000
Standard execution
Slicing bar horizontal, straight
2 Pcs. Downholder NH 20.00.00.000
Downholder, pneumatic execution
Execution with rod.
1 Pc. Weber circular knife WKM 10.10.20.460
without teeth
coated, without coated cutting edge.
Diameter 460 mm
1 blade guard for Weber circular knife 00.00.00.460
for weber circular knife of diameter 460 mm
1 Pc. Automatic product grippers APR 18.08.10.000
for product width from 181 up to 200 mm
for product height from 81 up to 100 mm
for meat and sausage products

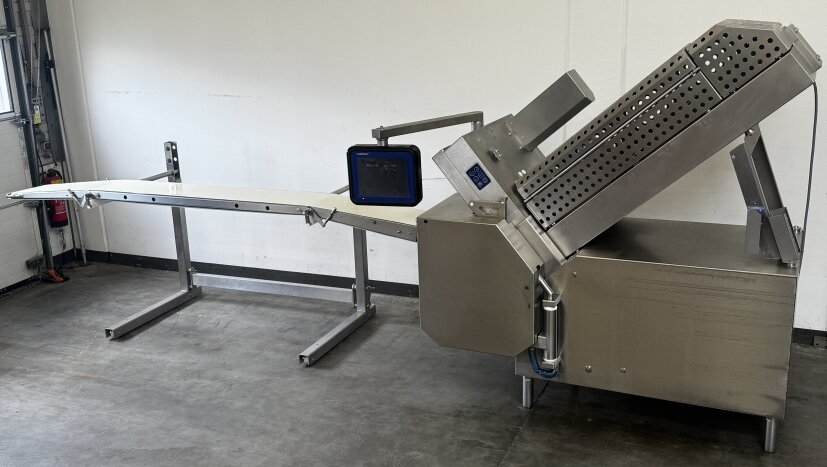

Computerslicer CCS 404 A 200
Slicer for slicing meat, sausage and cheese products to slices with
adjustable thickness of 0,1 to 50 mm.
The sliced portions are transported by the transfer-unit CCU,
consisting of a portioning conveyor and a control conveyor.

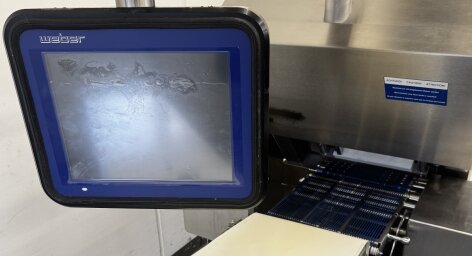

Machine control system with user-friendly interface.
Machine made completely of solid stainless steel.
Maximal cutting performance 600 slices/minutes.
Product carrier PZF 10.00.00.000
Carrier unit for product length up to 1,200 mm.
Standard, surface ground.
Transfer unit CCU 10.00.00.000
The transfer unit consists mainly of a portioning conveyor and a control
conveyor. The portioning conveyor picks up the slices cut by the Slicer,
divides them into portions and passes them on to the control conveyor for
further transport to the subsequent units. It is attached to the
discharge side of the Slicer and able to be swung out from the side.
The inclination of the CCU can be set progressively without any tool.
The transport means and the rollers can be easily removed.
CCU standard,
with portioning conveyor and control conveyor.
Portioning conveyor with flat belts,
Length of portioning conveyor approx. 170 mm.
Control conveyor with round belts,
Length of control conveyor approx. 485 mm.
Knife head MKF 50.00.00.000
Circular knifehead SK 144
Slicing throat SST 20.00.00.000
adjustable in width up to 330 mm.
Slicing throat, standard,
height fixed at 135 mm.
Transport conveyor CCE-LC 36.00.00.320
Moveable transport conveyor; light version.
Conveyor to transport the portions from the Slicer to the packaging machine.
The conveyor belt can be easily removed from the belt frame without using any
tools. The transport speed is controlled by the Slicer.
Belt width 320 mm
The height of the transport conveyor (upper edge) can be set to
1,100 mm
1,200 mm
1,300 mm
above the floor.
Length of transport conveyor, including spanner, approx. 3,600 mm.
Remark:
Product grippers, circular knives and downholders are chosen in accordance
with the original customer's products. For automatic products grippers in
combination with preformed slicing bars an application technology test is
always necessary! The number of grippers results from the applications.
