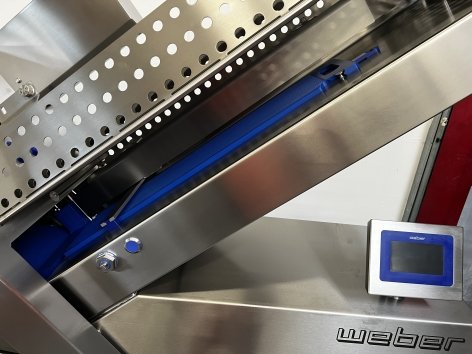

Computerslicer CCS 305 Basic
Slicer with manual loading for slicing meat and sausage products
to slices with adjustable thickness of 0.1 up 50 mm.
Machine made completely of solid stainless steel.
Machine control system with smart interface.
Slicer equipped with 7" Touch screen.
Maximal cutting performance 400 slices per minute
with circular blade head HSK 98 Easy Lock.
Carrier unit for product length up to 1,000 mm.
- Cleaning cover for blade head included
Product carrier PZF-LL
Execution for sausage and ham.
Without lateral pressure device.
Slicing throat SST
Slicing throat, height selectable 135 or 150 mm
Universal conveyor UB-100
Transport conveyor for transporting sliced portions. The transport conveyor
is attached to the Slicer on the infeed side and is supported by the floor or
by a packaging machine on the discharge side. The conveyor belt can be easily
removed from the belt frame for cleaning. The transport speed is controlled
by the Slicer. Possible portion shapes are: shingled portions and stacked
portions incl. Staggered Stack.
Length of the transport conveyor 2,100 mm
1 Pc.: Torque wrench for the EasyLock circular knife head.
The torque wrench is preset to 35 Nm and calibrated.
This torque corresponds to the specified torque for the
Bolt on Easy Lock circular knife head.
In addition, the matching nut is attached.
1 Pc.: Slicing bar SKE
Standard execution
Slicing bar horizontal, straight
For Slicing throat 135 mm
Art. No. 70527985-02
2 Pcs.: Downholder NH
Execution with roller
Art. No. 71541752
1 Pc.: Weber circular blade WKM
Model without teeth
Coated, without coated cutting edge
Diameter 460 mm
Art. No. 705050108
1 Pc. Blade guard for Weber circular blade
for circular blade of diameter 460 mm
Art. No. 71532262-02
1 Pc.: Automatic round grippers for calibrated products ARK
for calibre from 86 up to 95 mm
for meat and sausage products
Execution equipped with stainless steel cylinder
Product grippers, Downholders & Knives are chosen in accordance with the
original customer's products. For automatic products grippers in combination
with preformed slicing bars an application technology test is always
necessary!
